T6,T7 Series Single Pumps with Precision and Quality

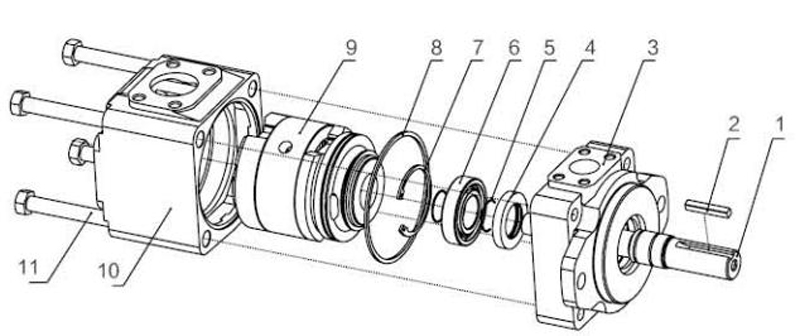

Description
|
No. |
Parts |
QTY |
NO. |
Parts |
QTY |
No. |
Parts |
QTY |
|||||||||
|
1 |
Shaft |
1 |
5 |
Cir clip for shaft |
2 |
9 |
Cartridge kit |
1 |
|||||||||
|
2 |
Flat key |
1 |
6 |
Ball bearing |
1 |
10 |
Rear cover |
1 |
|||||||||
|
3 |
Front cover |
1 |
7 |
Cir clip for hole |
1 |
11 |
shape retainer |
4 |
|||||||||
|
4 |
Shaft seal |
1 |
8 |
Rectangle seal ring |
1 |
|
|
|
|||||||||
|
T7B |
S |
-B10 |
-1 |
R |
0 |
-A |
1 |
01 |
|||||||||
|
Series |
Type code |
Flow code |
Shaft type |
Rotation |
Outlet port positions |
Design number |
Sealing level |
Port dimensions |
|||||||||
|
T7B |
NO:ISO 3019 |
B02、B03、B04、B05、B06、 B07、B08、B10、B12、B15 |
See shaft size |
View from shaft end of pump R-Clockwise(CW) L-Counterclock wise （CCW） |
View from shaft end of pump
Opposite inlet port Inline with inlet
90°ccW from Inlet
90°cW from Inlet |
A |
NBR Fluorine rubber |
See installation dimensions |
|||||||||
|
T7D |
B14、B17、B20、B22、B24、 B28、B31、B35、B38、B42 |
NO |
|||||||||||||||
|
T7E |
042、045、050、052、054、 057、062、066、072、085 |
||||||||||||||||
|
T6C |
NO: |
003/B03,005/B05,006/B06,008/ B08,010/B10,012/B12,014/ B14,017/B17,020/B20,022/ B22,025/B25,028/B28, |
|||||||||||||||
|
T6D |
014/B14,017/B17,020/B20,024/ B24,028/B28,031/B31,035/ B35,038/B38,042/B42,045/ B45,050/B50,061 |
||||||||||||||||
|
T6E |
042、045、050、052、057、062、066、072、085 |
||||||||||||||||
003/B03: In displacement code 0 means single steering side plate structure,B means double steering side plate structure.
|
es |
Flow code US gpm |
Theoretical displaceme nt mi/r |
Mpa Max.pressure Mpa |
Max.speedr/min |
Min.speedF/min | ||||||
|
Antiwear hydraulic oil |
General hydraulic oil or phosphate eater fluid |
Water glycol fluid or wateroil emulsions |
General hydrau lie oil and Antiw ear hydraulic oil |
Water glycol fluid.hosphate eater fluid or water-oil |
|||||||
|
Instant |
Continuous |
Instant |
Continuous |
Instant |
Continuous |
||||||
|
T7B(S) |
B02 |
5.8 |
35 |
32 |
24 |
21 |
17.5 |
14 |
3600 |
1800 |
600 |
|
B03 |
9.8 |
||||||||||
|
B04 |
12.8 |
||||||||||
|
B05 |
15.9 |
||||||||||
|
B06 |
19.8 |
||||||||||
|
B07 |
22.5 |
||||||||||
|
B08 |
24.9 |
||||||||||
|
B10 |
31.8 |
||||||||||
|
B12 |
41.0 |
30 |
27.5 |
3000 |
|||||||
|
B15 |
50.0 |
28 |
24 |
||||||||
|
T7D(S) |
B14 |
44 |
30 |
25 |
24 |
21 |
17.5 |
14 |
3000 |
1800 |
600 |
|
B17 |
55 |
||||||||||
|
B20 |
66 |
||||||||||
|
B22 |
70.3 |
||||||||||
|
B24 |
81.1 |
||||||||||
|
B28 |
90 |
||||||||||
|
B31 |
99.2 |
||||||||||
|
B35 |
113.4 |
28 |
2800 |
||||||||
|
B38 |
120.6 |
||||||||||
|
B42 |
137.5 |
26 |
23 |
2500 |
|||||||
|
T7E(S) |
42 |
132.3 |
25 |
21 |
21 |
17.5 |
17.5 |
14 |
2200 |
1800 |
600 |
